CloudWatch Logs

With this article, you'll learn how to leverage CloudWatch Logs as a health source. You'll gain a clear understanding of the necessary prerequisites, configuration steps, and the specific IAM permissions required for seamless integration, including advanced setups for cross-account access and IRSA.

note

• Feature Flag needs to be enabled - CDS_CV_CLOUDWATCH_LOGS_ENABLED
• Oldest supported delegate version - 858xx

General Instructions [for each CV config]

• Only one AWS region can be selected

• Multiple log groups can be selected

  • If you want to manually enter the log group name, don’t forget to press return/enter to register the input in the form

• Sample query to get started: fields @log, @logStream, @message, @timestamp

IAM Permissions

Describe Regions

The way AWS connector works is that it needs ec2:DescribeRegions permission mandatorily which could be added using the following permission policy:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": "ec2:DescribeRegions",
            "Resource": "*"
        }
    ]
}

Logs

We are essentially using 3 CloudWatch Logs APIs in our implementation:

• Describe Log Groups
• Start Query
• Get Query Results

So, the credentials provided in the AWS Connector should have the permissions to execute the above 3 operations. Following are some sample policies for reference:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "logs:DescribeLogGroups"
            ],
            "Resource": "arn:aws:logs:*:<AWS_ACCOUNT>:*"
        }
    ]
}

note

Replace the first * with an AWS region to restrict the listing the log groups from that region only

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "logs:StartQuery",
                "logs:GetQueryResults"
            ],
            "Resource": "arn:aws:logs:*:<AWS_ACCOUNT>:log-group:log-group-1:*"
        }
    ]
}

note

Replace the first * with an AWS region if you want to restrict it to that region only

The permissions so far are enough if you want to setup a connector with AWS Access Keys credentials only.

Advanced permissions [For Assume IAM role & IRSA]

If you are setting up the AWS connector with following:

• Assume IAM role on delegate
• IRSA (IAM Role on Service Account)

then, you would need some additional permissions along with the ones listed above.

Assume IAM Role on Delegate with STS enabled

When used with:

• Enable cross-account access (STS Role)

The IAM Role ARN should have permissions to be assumed the delegate and the delegate should also have permission to assume this role ARN i.e a two way handshake is needed with permission policies and trust policies.

Suppose our IAM role ARN - IAM_Role_ARN_LOGS in Account A where CloudWatch logs are (do make sure this IAM role has the above cloudwatch logs and describe regions permissions), needs to be assumed by a delegate in Account B with - IAM_Role_ARN_DELEGATE.

Now, the trust policy for IAM_Role_ARN_LOGS would look something like:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "IAM_ROLE_ARN_DELEGATE"
                ]
            },
            "Action": "sts:AssumeRole"
        }
    ]
}

Also, the IAM_Role_ARN_DELEGATE should have a permission policy to actually be able to perform assume role operations and it could look like:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AssumeRole",
            "Effect": "Allow",
            "Action": "sts:AssumeRole",
            "Resource": "*"
        },
        {
            "Sid": "Statement1",
            "Effect": "Allow",
            "Action": [
                "sts:AssumeRoleWithWebIdentity"
            ],
            "Resource": "*"
        }
    ]
}

IRSA

For IRSA, you should ensure that the correct service account is annotated and let’s say the role ARN for service account is - IAM_Role_ARN_SERVICE_ACCOUNT:

then the trust policy for the IAM_Role_ARN_LOGS would look like:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "IAM_ROLE_ARN_SERVICE_ACCOUNT"
                ]
            },
            "Action": "sts:AssumeRole"
        }
    ]
}



Also, the IAM_Role_ARN_SERVICE_ACCOUNT should also have the permission policy to be able to assume the  IAM_Role_ARN_LOGS (sample policy as follows):

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": "sts:AssumeRole",
            "Resource": "IAM_ROLE_ARN_LOGS"
        }
    ]
}

Dynamic Role ARN

Prerequisites

• Feature Flag needs to be enabled - CDS_CV_CLOUDWATCH_DYNAMIC_ROLE_ARN_ENABLED
• Oldest supported delegate version - 859xx

IAM Permissions

Its pretty much the same as the Assume IAM Role with STS as described above just for the new dynamic role ARN - Let’s call it Dynamic_Role_ARN_1 i.e the dynamic role ARN should allow the delegate to assume it and delegate should be able to assume the dynamic role same as above.

Permission Policies

It should have the same CloudWatch Logs and Describe Regions permissions as above.

Trust Policies

Similar to Assume IAM role:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "IAM_ROLE_ARN_DELEGATE"
                ]
            },
            "Action": "sts:AssumeRole"
        }
    ]
}

Setup

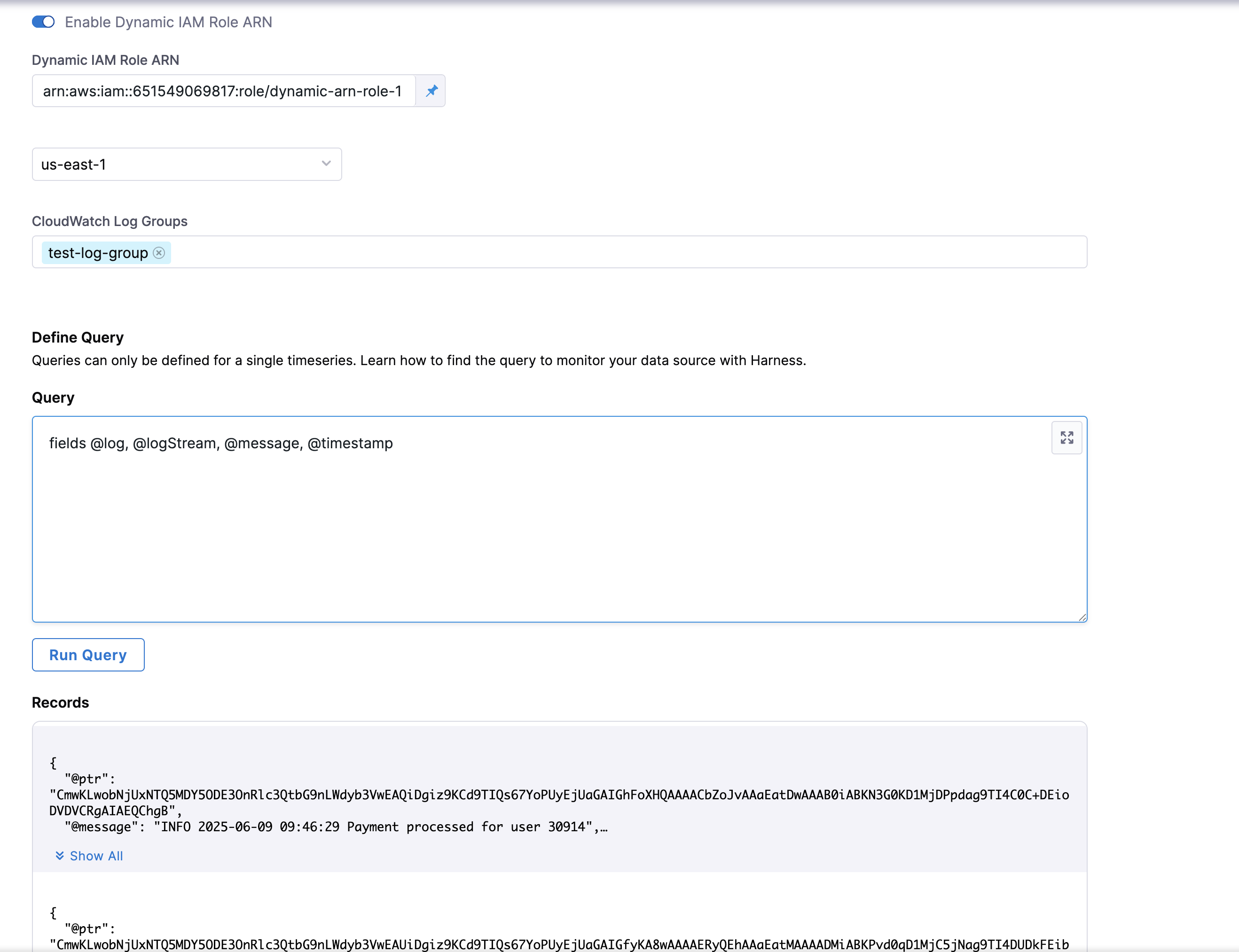

Just enable the Dynamic ARN toggle, enter the dynamic role arn in the new textbox that appears followed by the region and log-group.
